HUNSN 15″ TFT XGA LED Industrial Panel PC, 10 Point Projected Capacitive Touch Screen, J1900, Windows 7/10 / Linux Ubuntu, PW21, Front Panel IP65, VGA/LAN/3COM/FANLESS, (8G RAM/64G SSD)
(as of Oct 10,2022 02:36:02 UTC – Details)
Model Number: HUNSN PW21
1. Industrial Grade 15″” TFT XGA LED Panel
2. 10 Points Projected Capacitive Touch Screen
3. Front Panel IP65
CPU: Intel Celeron Processor J1900
Memory: SO DIMM 1* DDR3L 1333, Max. 8G RAM
Storage: 1* mSATA SSD+ 1* 2.5 Inch HDD
I/O: 3*RS232+ VGA+ LAN+ 3*USB2.0+ USB3.0+ DC+ Audio in&out
Cooling System: Fanless
BIOS: Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions
Network: Realtek 8111E
Physical Dimension: 392.4* 313.6* 54.9mm
Gross Weight: 4.8KGS
Opening Hole Size: 381.5* 302.5mm (L*W)
Standard VESA screw hole (75*75 or 100*100mm) for flexible installation
Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
Resolution: 1024* 768
Perspective: 80 (left), 80 (right), 80 (up), 80 (down)
Lumen (cd/m2): 400
Backlight Life: 50,000 hours (Min.)
Transmittance: 86±5% at 550 nm wavelength
Durability (number of touches): 200 million times
Operating Temperature: 0 ~ 50°C with SSD,0 ~ 40°C with HDD
Storage Temperature: -20 ℃ ~ 60 ℃
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V4A
Packing List: HUNSN PW21 Panel PC+ Power supply+ Power Cord+ Embedded Buckle Kit+ Warranty Card
System Support: Windows 7/10,Linux Ubuntu etc
System Default Option: Windows 10 pro in English
ATTENTION: For other options, Linux or other OS, other system language, do leave HUNSN message on the order, thank you.
15 inch tft xga led industrial grade front panel ip65 touch panel pc. 10 points projected capacitive touch screen, typical 1024* 768 resolution. Compact, fully functional, all the power and functionality of a desktop computer in a all in one design, powered by intel celeron quad core j1900 processor, ideal for industrial and commercial applications. suit for multiple application, industries, car repair shops, security, factory, business, fanancial and projects.
Windows 10 pro (64 bit) installed, set up is effortless and it’s ready to run straight out of the box, allows you to install software, games, apps and enjoy video, music, photo but this is integrated graphic not independent cards.
Fanless passive cooling design: silent solution that’s ultra energy-efficient. the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. 0 noise, low consumption.

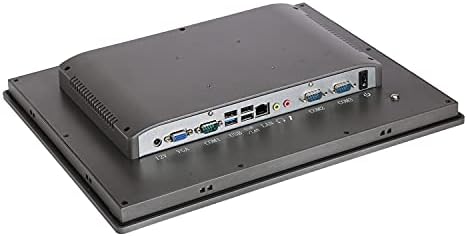

HUNSN PW21 designed with 3*rs232+ vga+ lan+ 3*usb2.0+ usb3.0+ dc+ audio in&out, industrial aesthetic design and reasonable interface layout. support automatically power on after power failure, size at 392.4* 313.6* 54.9mm, 4.8kgs, 12v4a power supply, with power cord, all use big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc.
Actual delivery time: most customers receive within 12-20 working days.
