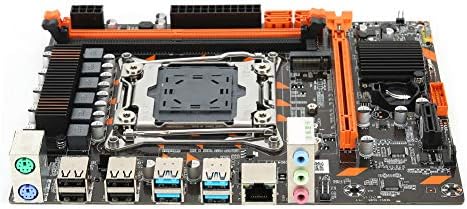

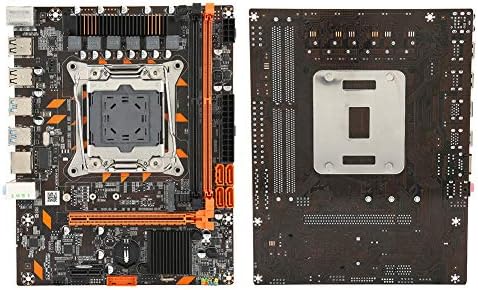

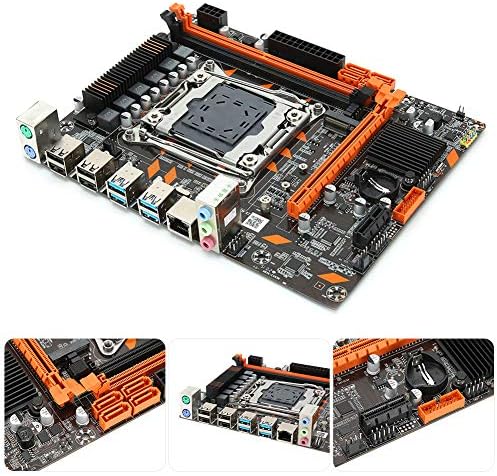

Computer Motherboard, Dual Channel Motherboard, Motherboard Replacement Computer Accessory Supports M.2 Hard Disk Port

Price: £115.37
(as of Oct 03,2022 02:41:38 UTC – Details)

Specification:
Condition: 100% Brand New
Item Type: Motherboard
Material: PCB
Color: As picture shown
Motherboard Chip:
Integrated chip sound card/networks card
Main chipset for Intel X99
Networks card chip integrated RTL8111H Gigabit networks card
Audio chip integrated 6-channel audio chip
Processors specifications
CPU socket LGA 2011-3
CPU type Zhiqiang V3 series and i7 series (support such as 5820K 5960K/E5-2678V3/E52676 V3/E5 2696 V3/E5 2629 V3/E5 2649 V3/E5 2668 V3, etc. (The i7CPU cannot be used with server memory at the same time)
Memory Specifications:
Memory Type: DDR42666/2400/2133MHz (REGECC or ordinary desktop memory)
Memory Slot: 2×DDR3 DIMM
Memory Capacity: can reached 2x32G

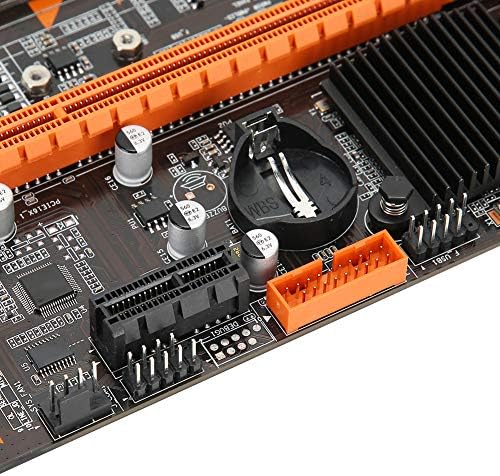

Expansion Slot:
PCI-E slot 1xPCI-EX16 graphics slot
PCI-E slot 1xPCI-EX1
2xUSB3.0 pins (1 group)
2x USB2.0 pins (1 group)
1XCMOS interface
4xSATA3.0 interface
1xNVME M.2 interface

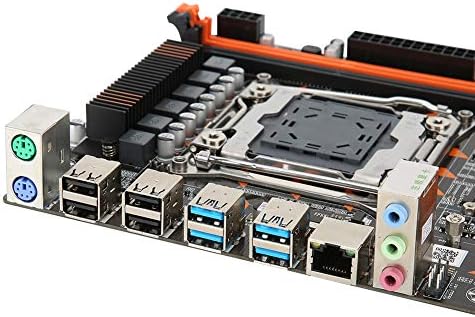

I/O Interface:
PS/2 interface PS/2 keyboard and mouse universal interface
1xRJ45 networks interface (Gigabit networks card)
4xUSB3.0 interface
4xUSB2.0 interface
audio port
An 8-pin power socket (when only 4 pins are connected to the main board power), a 24-pin power connector
6 power supply modes
Battery: CR2032L (not included)

Package List:
1 x X99 Motherboard
1 x ATA Cable
1 x Slot Board

Note:
You need to install the battery for the motherboard to work.
